Elite manufactures lined pipe and fittings by use compression molding, isostatic molding, injection molding, transfer molding, hot rotomolding, ram/paste extrusion, 3D rotational molding etc.
Working temperature is high at the range of -29oC-200oC; except the molten alkali metals, element fluorine and aromatic hydrocarbon, lined products can be used in any chemical medium.
Vacuum resistance. In the range of -29oC-150oC, it is applicable for vacuum condition. In chemical production, the vacuum condition occurs due to cooling, longitudinal emissions, or medium backflow.
High-pressure resistance. Within temperature working condition, it can sustain the working pressure of 3.0MPa.
Resistance to penetration. Adapt the high-quality PTFE, to make it of high density and enough thickness after advanced lining processing, make it excellent anti-osmosis.
PTFE advanced lining molding process achieved the status of synchronous hot expansion or cold shrinkage for steel components and fluorine plastic.
Elite adopts the standard size according to HG, GB, DIN, ANSI, and JIS etc., which improves interchangeability, to provide convenience for installation.
Specific gravity: 2.14-2.19g/cm3 as per ASTM D 792 test standard.
Tensile rate: 20.7Mpa minimum as per ASTM D 638 test standard
Elongation rate: 250% minimum as per ASTM D 638 test standard.
Attribute
Description
Pipe Material
ASTM A106
Lining Material
PTFE, PO, PE, PP
Flange Material
SS304, SS304L, SS316, SS316L, ASTM A3
Nominal Diameter
NPS 1-24
Pressure Range
150lb, 300lb, JIS 10k, DIS
Connection Type
Flange Connection

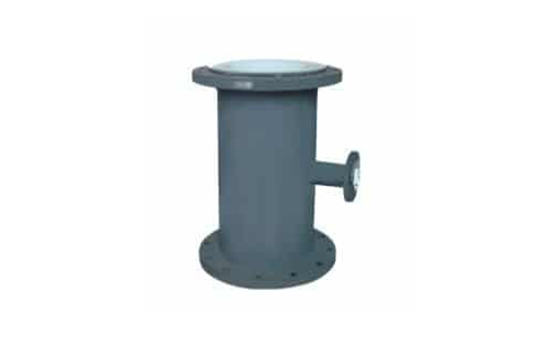

Type: Equal
Material: Carbon Steel
Lateral: 90°Tee
Finish: Anti Rust Oil
Standard: ANSI
Size: Dn25~600
Medium: Corrosion Medium
Transport Package: Plywood
Connection: Flange
Shape: Equal Tee
Head Code: Round
Technics: Casting
Certification: CE
Materials: Wcb+PTFE
