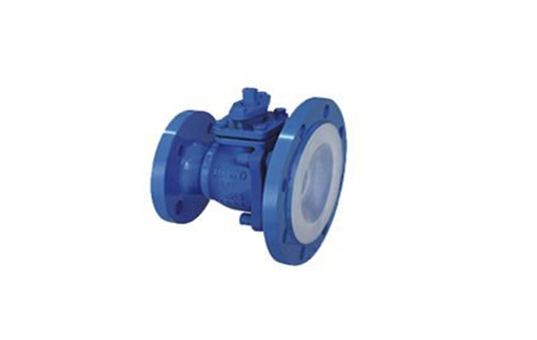

Two pieces full port standard lined ball valves offer high stability, rigidity and eliminating potential leak path.
Full port design minimizes pressure losses and increases flow capacities thus reducing energy and pumping costs.
Full bore design almost no fluid resistance, and good shut-off performance.
It features zero leakage, maintenance-free, one-piece stem and ball design, high sealing performance and can be used under full vacuum service.
Lower pressure drop and high flow characterized the efficiency of elite lined ball valves.
It can work as on-off or control valve.
It can sustain any corrosive medium in addition to the Molten alkali metals and fluorine elements? ? . It is ideal products used in chlor-alkali, industrial in organic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical etc.
Lining material: PFA, FEP, GXPO etc.
Operation methods: Manual, worm gear, electric, pneumatic and hydraulic actuator.
Elite lined ball valves are available as per the needs of applications in additional sizes and other than standard materials.
Property
Specification
Design/Manufacturer Standard
ASME B16.34, HG/T 3704
Face-to-face Dimension
ASME B16.10, GB/T 12221
Flange Standard
ASME B 16.5, GB/T 9119, DIN, JIS
Inspection and Testing
API 598, GB/T 13927
Model NO.: EQX41PFA
Connection Form: Flange
Nominal Pressure: ANSI CLASS 150-900
Structure: Floating Ball Valve
Function: Relief Valve
Application: Industrial Usage
Materials: Wcb+PFA
Treatment: Epoxy Painting
Transport Package: Plywood Case
Material: Carbon Steel, CF8, CF8m, CF3, CF3m, Ductile Iron
