Since the valve port corresponds to the piping diameter, a high flow capacity is guaranteed.
It features ease of maintenance, repeatable on-off, long life durability.
The concentric design is commonly used in the power generation, brewing, water and food industries and suitable for both gaseous and liquid service. Typically applied in chemical/petrochemical process, food and beverage, and pulp and paper etc.
Lining material: PTFE, PFA, FEP, GXPO etc.
Connection type: wafer, flange, lug etc.
Operation methods: manual, worm gear, electric, pneumatic and hydraulic actuator.
Elite lined three-way ball valves are available as per the needs of applications in additional sizes and other than standard materials.
| Property |
Specification |
| Design/Manufacturer Standard |
ASME B16.34, HG/T 3704 |
| Face-to-face Dimension |
ASME B16.10, GB/T 12221 |
| Flange Standard |
ASME B 16.5, GB/T 9119, DIN, JIS |
| Inspection and Testing |
API 598, GB/T 13927 |

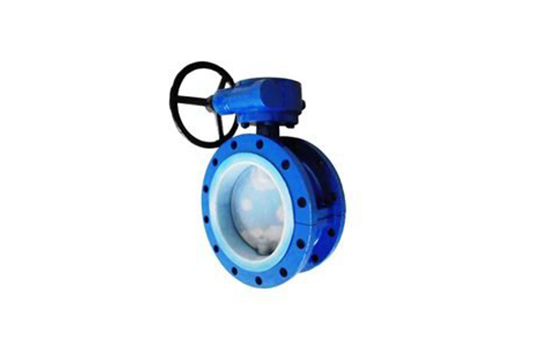

| Image |
|
- Model NO.: ED341PFA
- Connection Form: Flange
- Seal Form: Auto Sealed
- Work Pressure: Low Pressure (Pn<1.6mpa)
- Material of Seal Surface: Soft Sealed
- Application: Industrial Usage
- Pressure: 150lb
- Specification: CE, SGS, TS, GMC
- Driving Mode: Manual
- Structure: Centre Sealing
- Valve Stem: Normal
- Working Temperature: Normal Temperature (-40°C<T<120°C)
- Valve Body: Casting
- Body Material: Wcb+PFA
- Diameter: Dn50~2000
- Transport Package: Plywood
