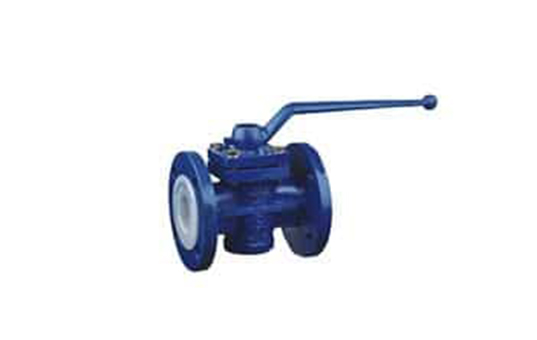

High-Performance PFA Plug Valve – Flange Type

PFA Lined Plug Valve Flange Type for Corrosion Medium – EX43PFA

Products Description

Body Material: WCB, ASTM A395 , CF8 ,CF8M Lining Material: PTFE , PFA, FEP Nominal Diameter: 1/2″-14″(DN15~DN350) Pressure Range: Class150 , Class300 , PN10 , PN16
Download Data Sheet
Property Specification
Operation Method Manual, Worn gear, Electric, Pneumatic actuator
Design/Manufacturer Standard ASME B16.34, HG/T 3704
Face-to-face Dimension ASME B16.10, GB/T 12221
Flange Standard ASME B 16.5, GB/T 9119, DIN, JIS
Inspection and Testing API 598, GB/T 13927
  • Model NO.: G41PFA-16C
  • Connection: Flanged Diaphragm Valve
  • Structure: Weir Diaphragm Valve
  • Flow Direction: Bidirectional
  • Usage: Drain
  • Diameter: Dn15~250
  • Liner: PFA
  • Specification: CE, TS, ISO
  • Actuator: Manual
  • Material: Cast Steel
  • Pressure: Low Pressure
  • Function: Electronic Type
  • Standard: GB
  • Materials: Wcb+PFA
  • Operator: Hand Wheel
  • Transport Package: Plywood
